Agilent N2862A

Description

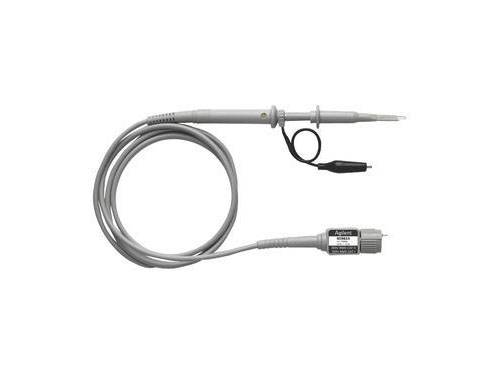

Passive Probe, 10:1, 150 MHz, 1.2 m N2862A: Bandwidth DC to 150 MHz, Risetime 2.33 ns N2863A: Bandwidth DC to 300 MHz, Risetime 1.16 ns Attenuation ratio 10:1 Input resistance 10 Megohms (when terminated into 1 Megohm) Input capacitance approx. 12 pF Maximum input 300 V RMS Compensation range 5-30 pF Cable length 1.2 m Safety Conformance to IEC-1010
